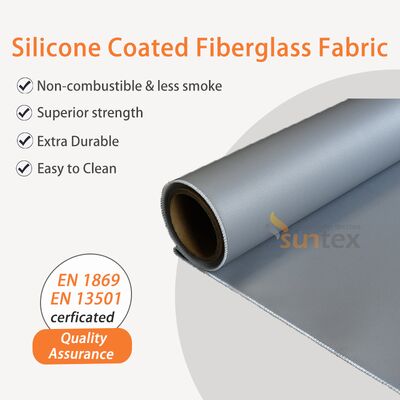

Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric
無料のサンプルとクーポンを私に連絡してください.
ワットスアップ:0086 18588475571
ウェイチャット: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| Temperature resistance | -50 C degree to 500 C degree | Weight | 400 g/sqm |
|---|---|---|---|
| Thickness | 0.3 mm | Coating | silicone rubber |
| Width | 1 / 1.2 / 1.5 meter | Alkali Content | Alkali Free |
| Color | Grey | Roll length | 50 m / 100 m |
| ハイライト | Excellent Insulation Silicone Coated Fiberglass Fabric,Fire Retardant Silicone Coated Fiberglass Fabric |
||
製品の説明

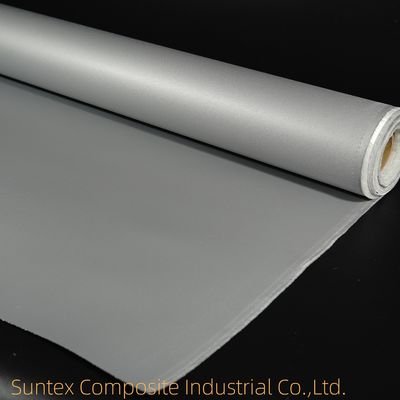

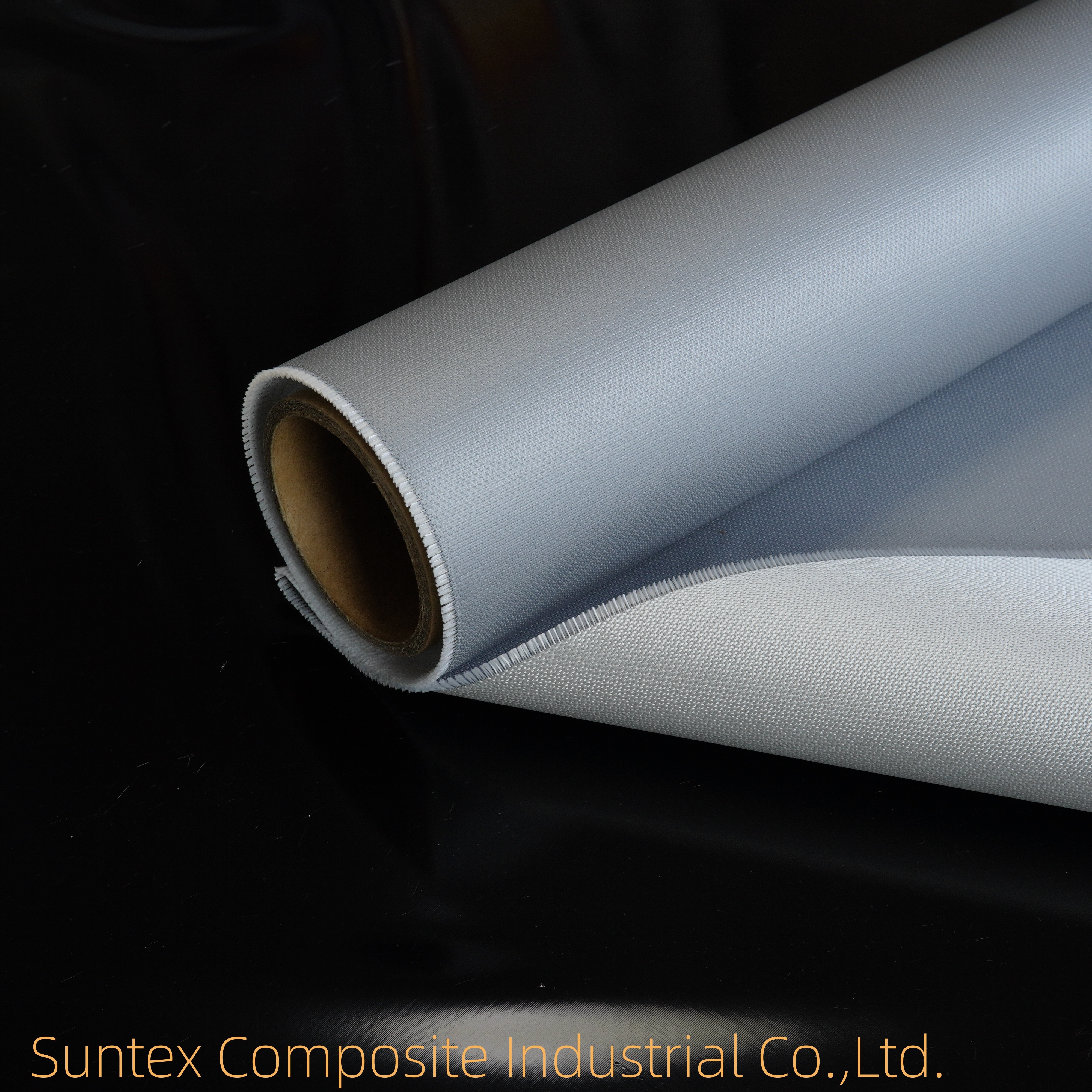

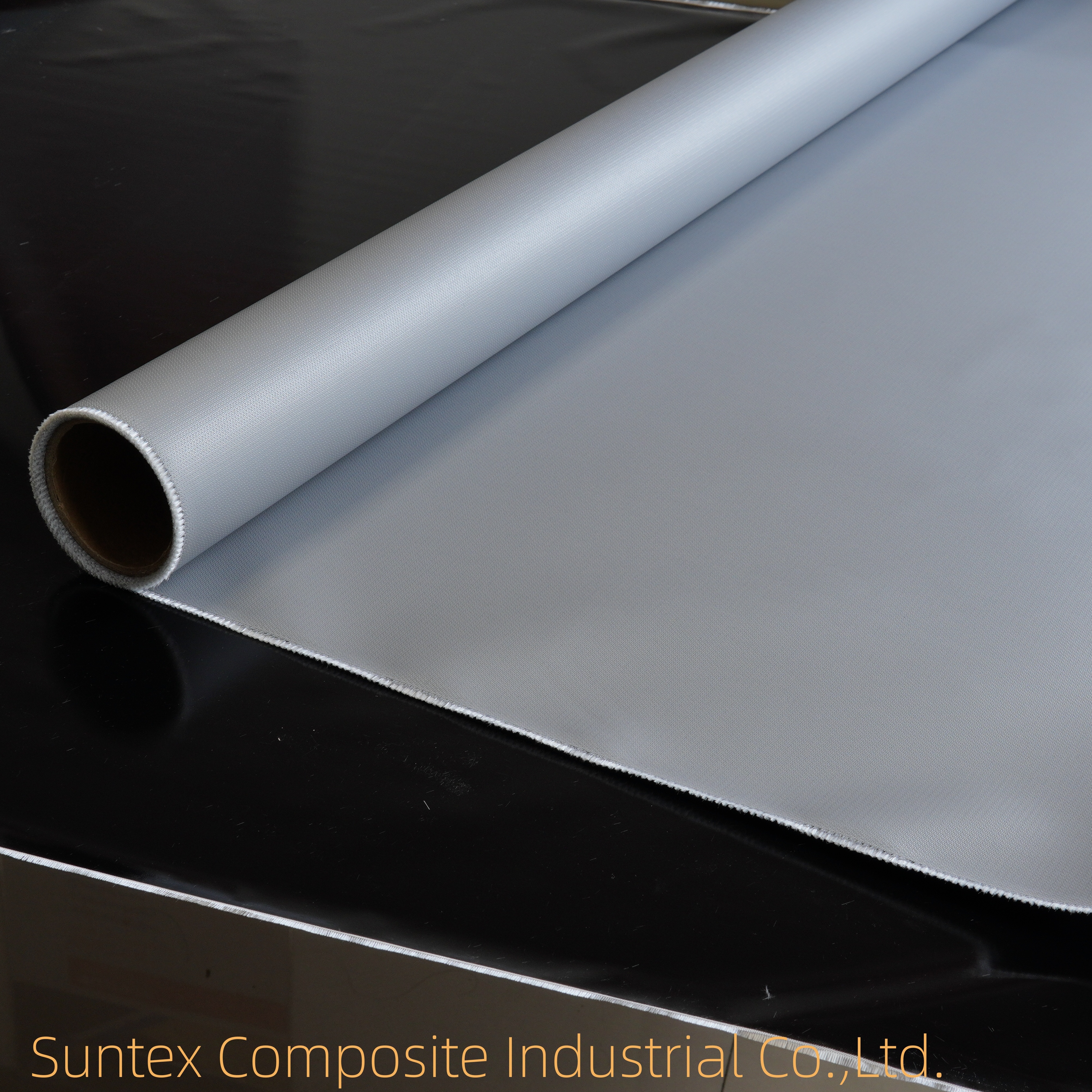

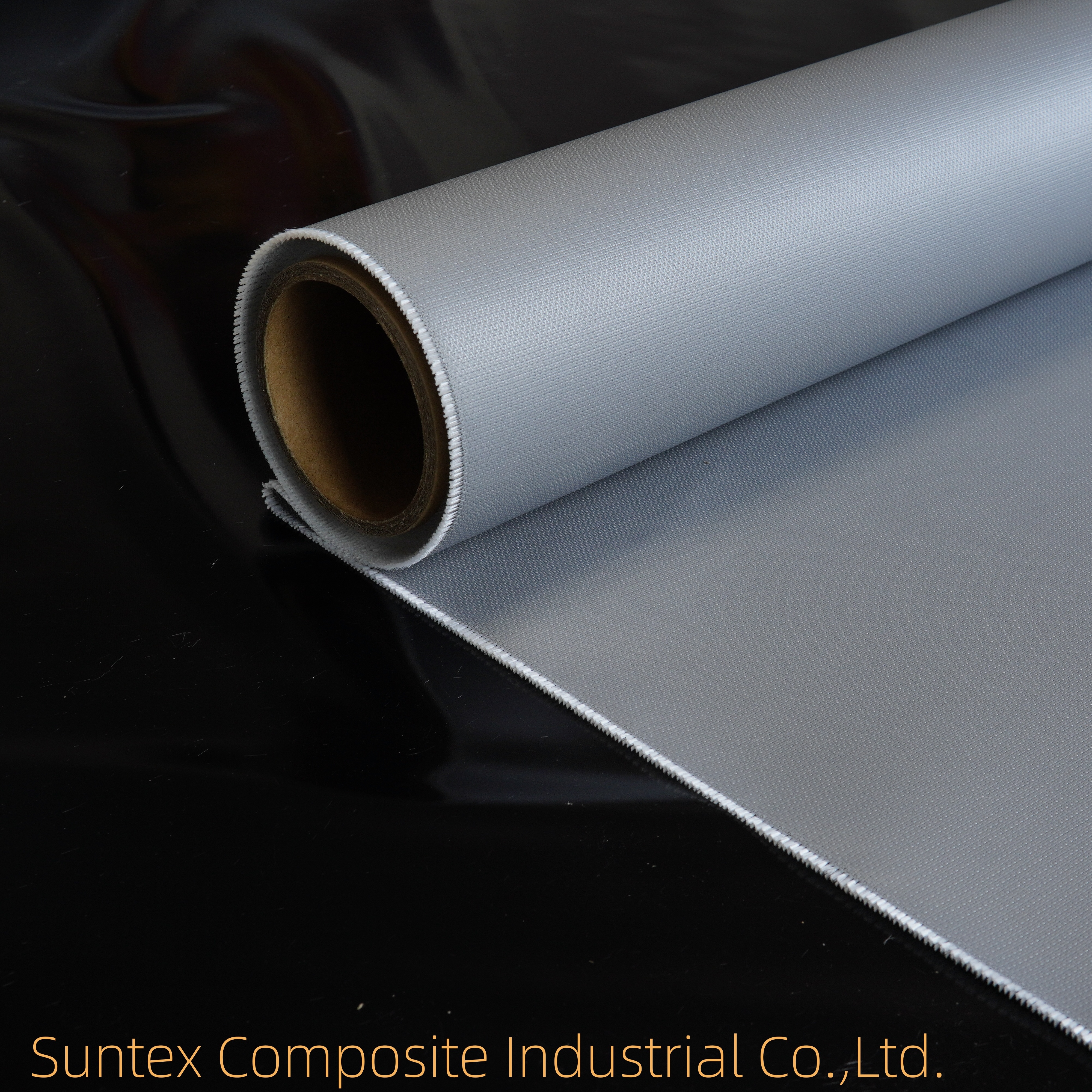

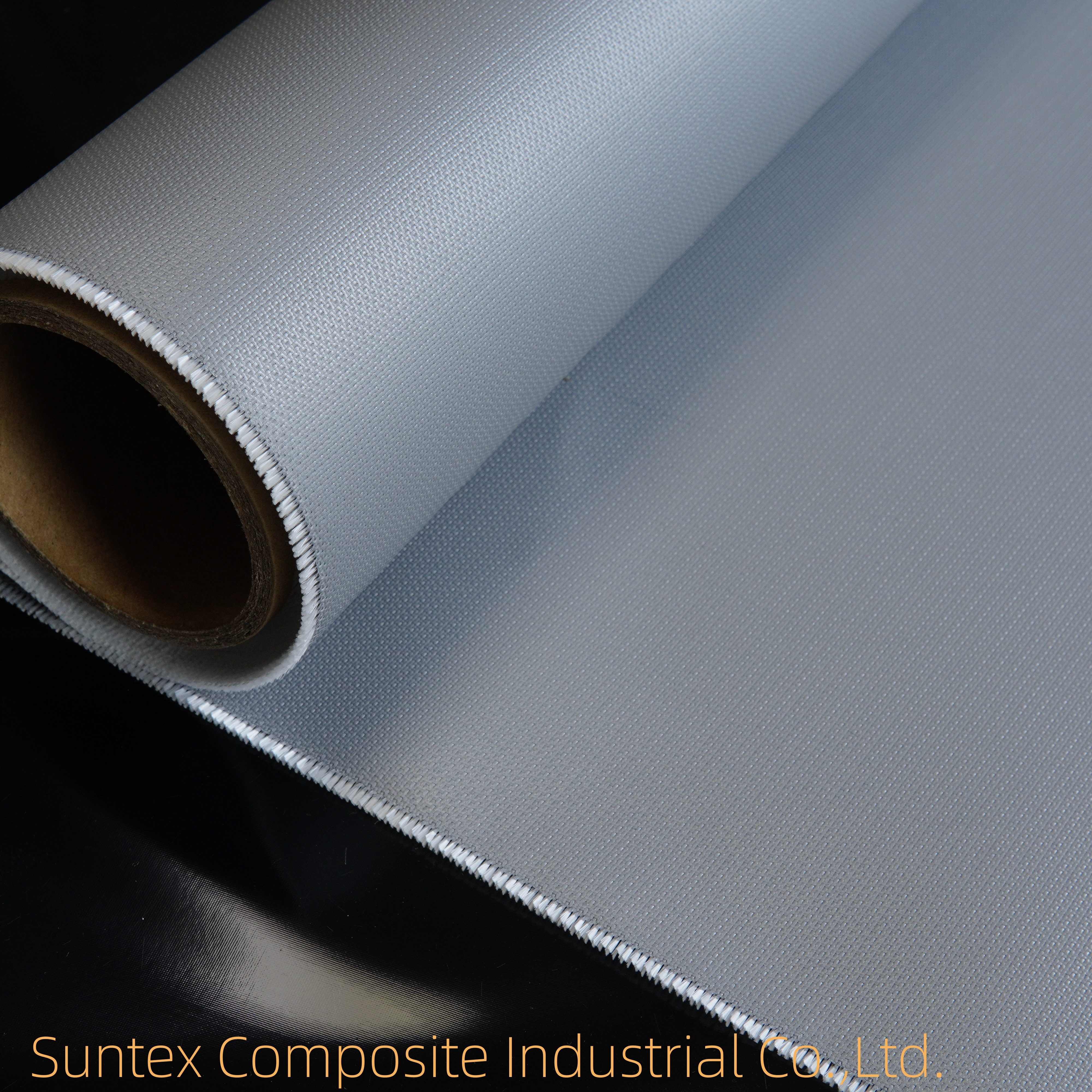

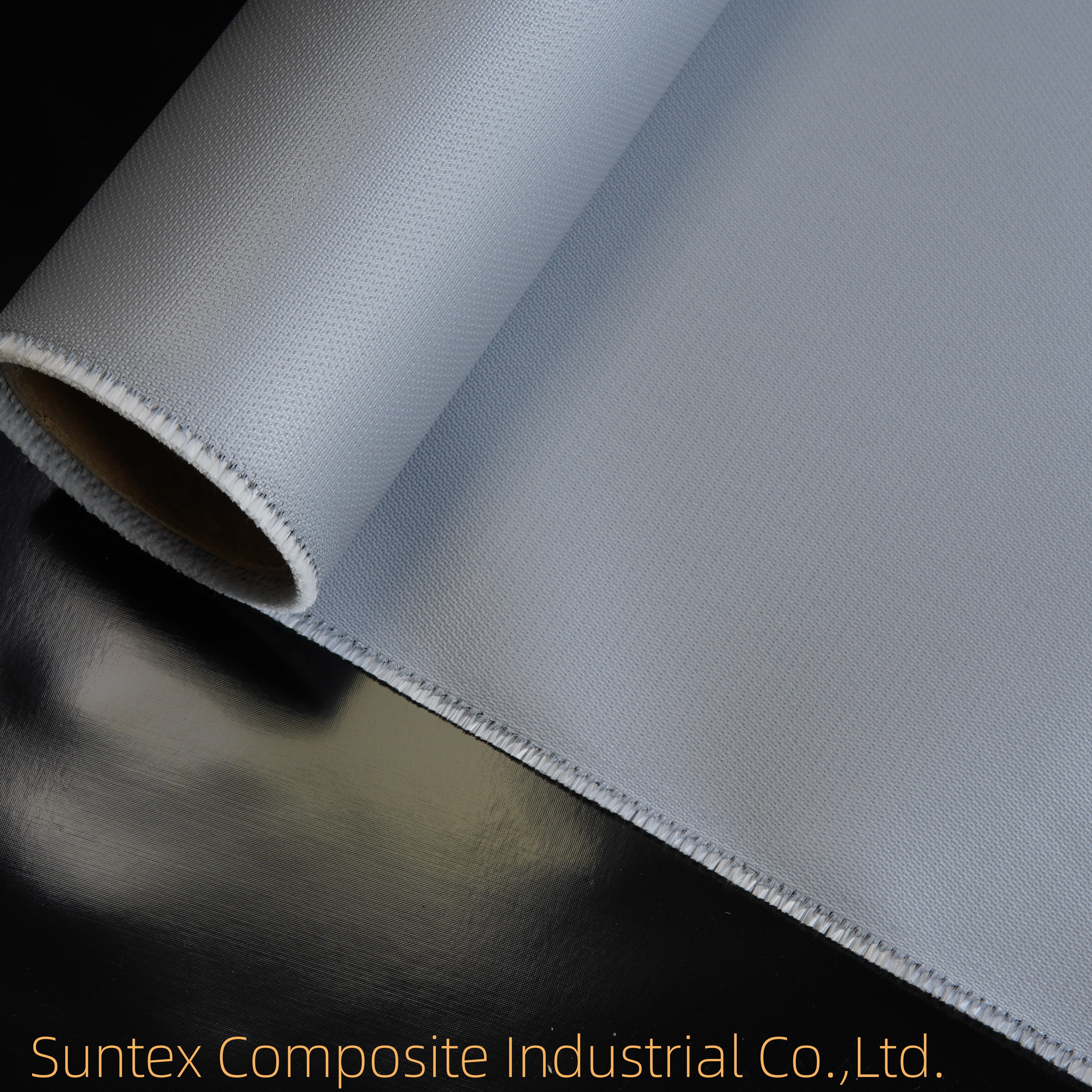

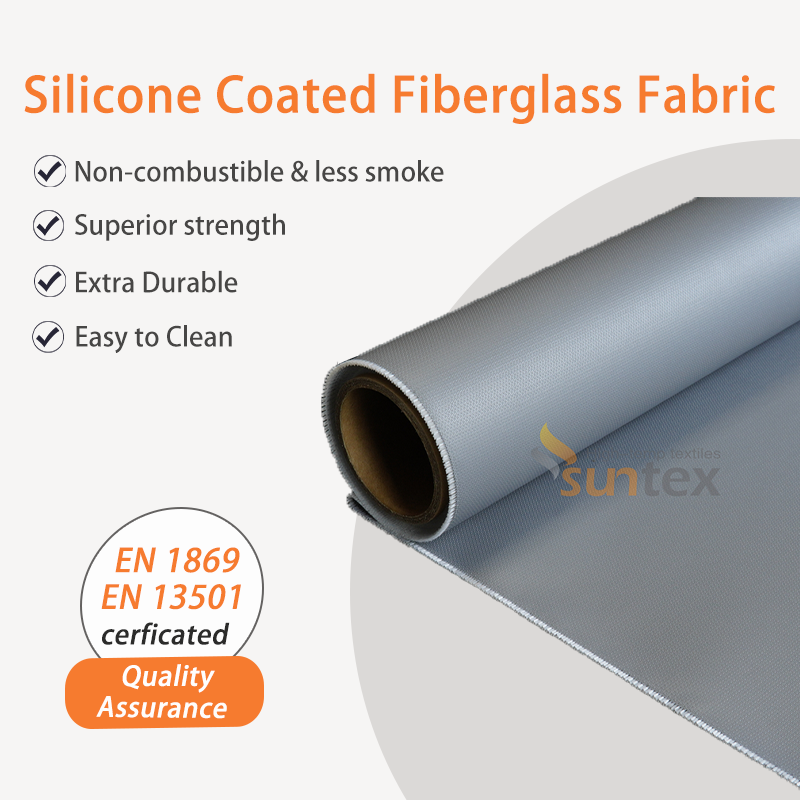

Grey Color Double Sided Silicone Coated Glass Fabric Insulation , Fire Retardant Curtain Fabric
Product Description
Silicone coated fiberglass fabrics
Silicone coated fiberglass fabrics from Suntex offers good resistance to extreme temperatures, being able to operate normally from -500C to +5500C. It is also anti-corrosive, weatherproof, corrosion resistance, water repellent,anti-aging, good chemical resistance to acids and lye, good mechanical properties.
Suntex provides one-sided/double-sided silicone coated fiberglass fabrics with many varieties of coating weight, colors, and widths for different applications.
Main applications:
1.Shipping, power generation, aerospace, marine
2.Foundry splash protection, welding defenders, motor vehicle industry
3.Insulation jackets, mattress, and pad
4.Fabric expansion joints
5.Fabric ductwork connector
6.Fire doors & Fire curtains
7.Welding/fire blankets
8.Other fire control systems
| BASE FABRIC | Base fabric style No. GF430P | ||
| (metric) | (English) | Test methods | |
| Weave | 4H Satin | Crowfoot | |
| Yarn | |||
| Warp | EC9 68 1*2 | ECG 75 1/2 | |
| Weft | EC9 68 1*2 | ECG 75 1/2 | |
| Construction | |||
| Warp | 18 ± 1 ends/cm | 48 ± 3 ends/inch | ASTM D 3775-96 |
| Weft | 12.6 ± 1 picks/cm | 32 ± 3 picks/inch | ASTM D 3775-96 |
| Weight | 430 ± 30 g/m2 | 12.6 ± 0.9 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.37 ± 0.06 mm | 0.015 ± 0.002 inch | ASTM D1777-96 |
| COATED FABRIC | Coating style No. SI244-1017 | ||
| Coating | Silicone rubber 2 sides | ||
| Weight | 590 ± 25 g/m2 | 17.4 ± 0.74 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.45± 0.02 mm | 0.018 ± 0.0007 inch | ASTM D1777-96 |
| Color | Red | ||
| Fire resistance | Flame retardant | ||
| Temp resistance |
Glass fabric up to 5500C (10000F) Silicone rubber coating up to 2500C (4800F) |
||
