x商品の詳細
| Material | ceramic fiber insulation, fiberglass cloth | Yarn type | E-Glass |
|---|---|---|---|
| Alkali content | Alkali Free | Weight | from 200 to 2000 gram/sq.mtr |
| Thickness | 25-100mm | Colors | red,grey,black,green,and customed colors |
| Temperature resistance | -60C-1200C | Size | be customized according to different shapes and sizes of the equipment |
| Good Features | weatherproof, durable, reusable, easily applicable | Application | pipes and flanges insulation,etc. |
| ハイライト | thermal insulation fabric,Silicone Coated Fiberglass Fabric,Thermal Insulation Cover |
||
製品の説明

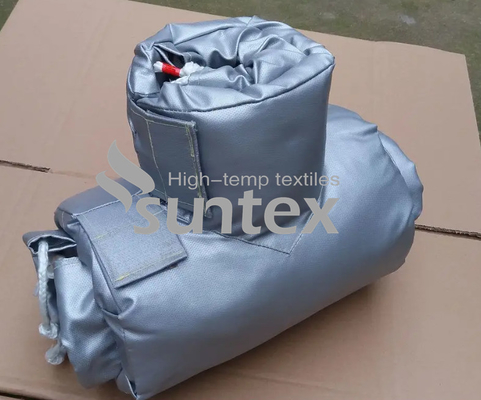

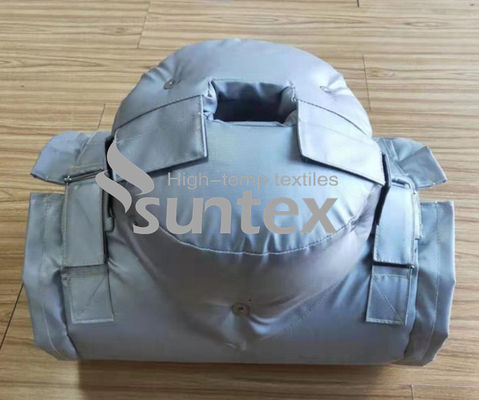

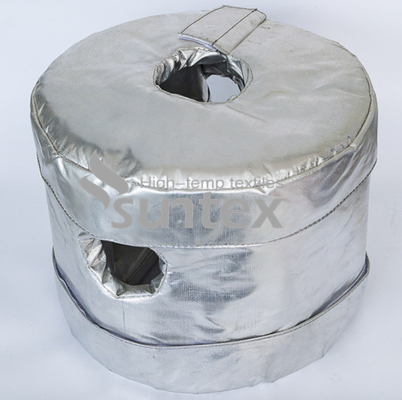

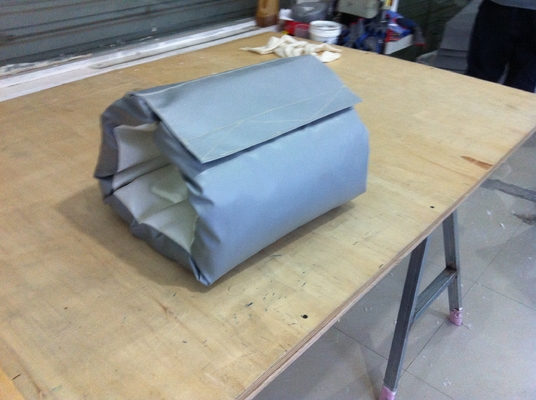

Heat Guard Fiberglass Insulation Cover For Insulation Of Flanges And Pipes
Product Description
Suntex heat guard insulation cover is an economical solution for reducing heat loss and energy costs. It conserves energy, preserves process temperatures, and improve workplace safety for various applications with in process industry where heat conservation and process temperature are concerns. It is applicable for the insulation of flanges and pipes.
it is also known as removable insulation jackets made from ceramic fiber insulation and fiberglass cloth. It is asbestos free , environmentally safe, durable, reusable, and easily applicable.
Application:

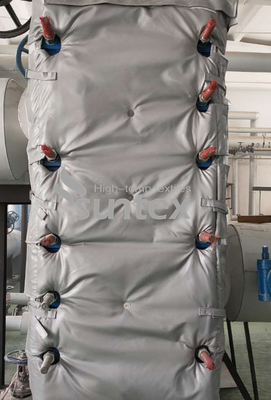

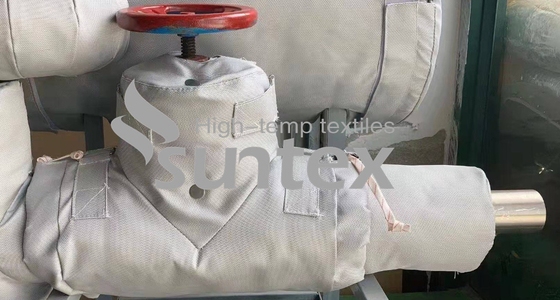

It is customized and wrapped outside flanges, pipes, pumps, filters, exchange, pipeline, valves, freeze protection, and others.
characteristics of Suntex thermal insulation covers:
--Excellent control or reduction of radiant heat loss
--Improves equipment efficiency and durability
--Reduces energy consumption
--Removable and reusable
--Reduce maintenance cost
--Closed insulation system
--Personal protection
--Reduce sound transmission
--Asbestos free and environmentally safe
--Weatherproof
Hereunder is a fabrics list for thermal insulation jacket, cover, and mattress.
| Style No. | Base fabric | Coatings | Color | Weight | Thickness | Working temp. | |||
| (gram/m2) | (Oz/yd2) | (mm) | (inch) | (0C) | (0F) | ||||
| GF430P-SI1413 | Fiberglass | Silicone | silver grey | 510 | 15 | 0.4 | 0.016 | 260 | 500 |
| GF430P-SI2423 | Fiberglass | Silicone | silver grey | 560 | 16 | 0.45 | 0.018 | 260 | 500 |
| GF660P-SI2453 | Fiberglass | Silicone | silver grey | 960 | 28 | 0.76 | 0.030 | 260 | 500 |
| GF880P-SI2463 | Fiberglass | Silicone | silver grey | 1380 | 41 | 1.25 | 0.049 | 260 | 500 |
| GF600-WS210 | Fiberglass | Weave-locked | Green | 630 | 19 | 0.6 | 0.024 | 550 | 1000 |
| GF800-WS212 | Fiberglass | Weave-locked | Blue | 830 | 24 | 0.75 | 0.030 | 550 | 1000 |
| GF430-PTFE213E | Fiberglass | PTFE | Grey/Black | 530 | 16 | 0.45 | 0.018 | 550 | 1000 |
| GF430-AL1110 | Fiberglass | Aluminum Foil | Silver | 470 | 14 | 0.4 | 0.016 | 550 | 1000 |
| GF430-AL1300 | Fiberglass | Aluminized polymer film | Silver | 450 | 13 | 0.4 | 0.016 | 550 | 1000 |
| TGF1000-GP225 | Fiberglass | Graphite | Black | 1100 | 32 | 1.5 | 0.059 | 700 | 1290 |
| TGF2050-GF235 | Fiberglass | Graphite | Black | 2270 | 67 | 3.5 | 0.138 | 700 | 1290 |
| TGF880-GP225 | Fiberglass | Graphite | Black | 980 | 29 | 1 | 0.039 | 700 | 1290 |
| TGF1000-VE226 | Fiberglass | Vermiculite | Tan | 1080 | 32 | 1.5 | 0.059 | 750 | 1380 |
| TGF1000-CS2110 | Fiberglass | Calcium Silicate | White | 1080 | 32 | 1.5 | 0.059 | 700 | 1290 |
| TGF1000-CS2111 | Fiberglass | Calcium Silicate | Green | 1080 | 32 | 1.5 | 0.059 | 700 | 1290 |
| TGF1000-CS2112 | Fiberglass | Calcium Silicate | Blue | 1080 | 32 | 1.5 | 0.059 | 700 | 1290 |
Packaging & Shipping
