x商品の詳細
| Material | aluminum-foil,glassfiber and high temperature resistance cloth | Yarn type | E-Glass |
|---|---|---|---|
| Alkali content | Alkali Free | Weave Type | twill |
| Weight | from 200 to 2000 gram/sq.mtr | Thickness | 25-100mm |
| Width | 1m 1.2m 1.5m 1.8m 2m or customized | Colors | red,grey,black,green,and customed colors |
| Temperature resistance | -70C~+1000 C | Size | be customized according to different shapes and sizes of the equipment |
| Fabrics for | removable thermal insulation pads,jackets | Good Features | excellent insulation, water and oil proofing, easy to clean |
| Application 1 | heat preservation and insulation on pipes, elbow, flange, tees | Application 2 | chemical reactors, turbine suits, heat exchanges, exhaust pipe |
| ハイライト | coated fiberglass fabric,Silicone Coated Glass Fiber Fabric,Insulation Cover |
||
製品の説明

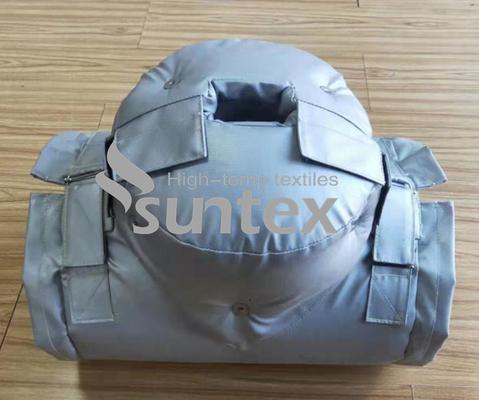

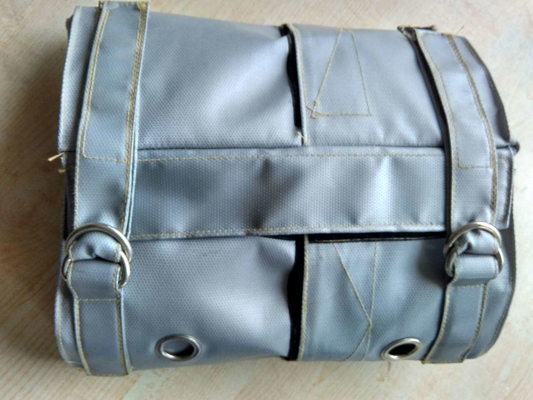

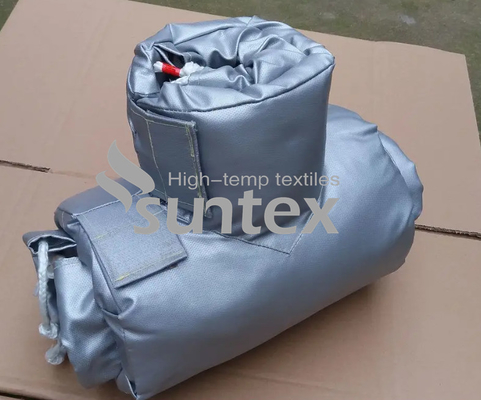

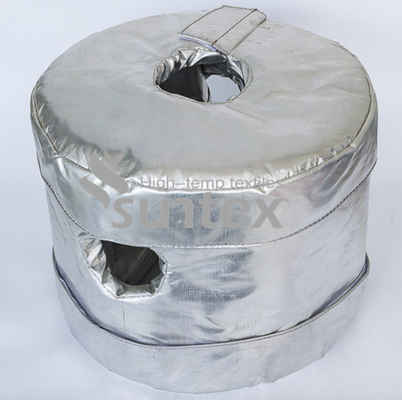

Customized Reusable Fiberglass Thermal Cover Removable Insulation Jacket
Product Description
Suntex removable insulation jackets are made of glass fiber and high-temperature resistant aluminum foil or silicone cloth. The Jacket comprises three layers-inner, insulation, and protective layers. The working temperature can be up to 1000 C.It has many advantages such as excellent insulation, water, and oil proofing,multi-lay protection,anti-corrosion, easy to clean, easy to bend,pollution-free. It Can be customized according to different shapes and sizes of the equipment, it is all up to customers’ requirements.
Application:
--removable thermal insulation cover, insulation blanket, insulation cover
--injection molding machine, extrusion machines, molds& dies

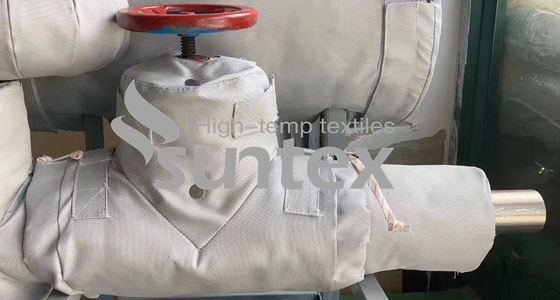

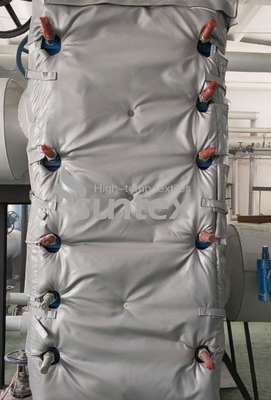

--heat preservation and insulation on pipes. elbow, flange, tees, chemical reactors
--turbine suits of thermal power and nuclear powers
--gas turbine suits, the heat exchanges and the exhaust pipe of engines
Hereunder is a fabrics list for thermal insulation jacket, cover, and mattress.
| Style No. | Base fabric | Coatings | Color | Weight | Thickness | Working temp. | |||
| (gram/m2) | (Oz/yd2) | (mm) | (inch) | (0C) | (0F) | ||||
| GF430P-SI1413 | Fiberglass | Silicone | silver grey | 510 | 15 | 0.4 | 0.016 | 260 | 500 |
| GF430P-SI2423 | Fiberglass | Silicone | silver grey | 560 | 16 | 0.45 | 0.018 | 260 | 500 |
| GF660P-SI2453 | Fiberglass | Silicone | silver grey | 960 | 28 | 0.76 | 0.030 | 260 | 500 |
| GF880P-SI2463 | Fiberglass | Silicone | silver grey | 1380 | 41 | 1.25 | 0.049 | 260 | 500 |
| GF600-WS210 | Fiberglass | Weave-locked | Green | 630 | 19 | 0.6 | 0.024 | 550 | 1000 |
| GF800-WS212 | Fiberglass | Weave-locked | Blue | 830 | 24 | 0.75 | 0.030 | 550 | 1000 |
| GF430-PTFE213E | Fiberglass | PTFE | Grey/Black | 530 | 16 | 0.45 | 0.018 | 550 | 1000 |
| GF430-AL1110 | Fiberglass | Aluminum Foil | Silver | 470 | 14 | 0.4 | 0.016 | 550 | 1000 |
| GF430-AL1300 | Fiberglass | Aluminized polymer film | Silver | 450 | 13 | 0.4 | 0.016 | 550 | 1000 |
| TGF1000-GP225 | Fiberglass | Graphite | Black | 1100 | 32 | 1.5 | 0.059 | 700 | 1290 |
| TGF2050-GF235 | Fiberglass | Graphite | Black | 2270 | 67 | 3.5 | 0.138 | 700 | 1290 |
| TGF880-GP225 | Fiberglass | Graphite | Black | 980 | 29 | 1 | 0.039 | 700 | 1290 |
| TGF1000-VE226 | Fiberglass | Vermiculite | Tan | 1080 | 32 | 1.5 | 0.059 | 750 | 1380 |
| TGF1000-CS2110 | Fiberglass | Calcium Silicate | White | 1080 | 32 | 1.5 | 0.059 | 700 | 1290 |
| TGF1000-CS2111 | Fiberglass | Calcium Silicate | Green | 1080 | 32 | 1.5 | 0.059 | 700 | 1290 |
| TGF1000-CS2112 | Fiberglass | Calcium Silicate | Blue | 1080 | 32 | 1.5 | 0.059 | 700 | 1290 |
