商品の詳細:
お支払配送条件:
|
| Material: | aluminum-foil,glassfiber and high temperature resistance cloth | ヤーンのタイプ: | Eガラス |
|---|---|---|---|
| アルカリの内容: | 自由なアルカリ | 織り方のタイプ: | あや織り |
| 重量: | 200から2000グラムから/sq.mtr | 厚さ: | 25-100mm |
| 幅: | 1m 1.2m 1.5m 1.8m 2mまたはカスタマイズされる | 色: | 赤く、灰色、黒く、緑の、およびcustomed色 |
| 温度の抵抗: | -70C~+1000 C | サイズ: | 装置の異なった形そしてサイズに従ってカスタマイズされなさい |
| 生地のための: | 取り外し可能な断熱材のパッド、ジャケット | よい特徴: | きれいになること容易な優秀な絶縁材、水およびオイルの補強 |
| 適用1: | 管の熱保存そして絶縁材、肘、フランジは、ティーにのせる | 適用2: | 反応器、タービン スーツ、熱交換、排気管 |
| ハイライト: | Silicone Rubber Coated Fiberglass Fabric,Coated Thermal Insulation Fabric,Removable Insulation Jacket Fiberglass Fabric |
||

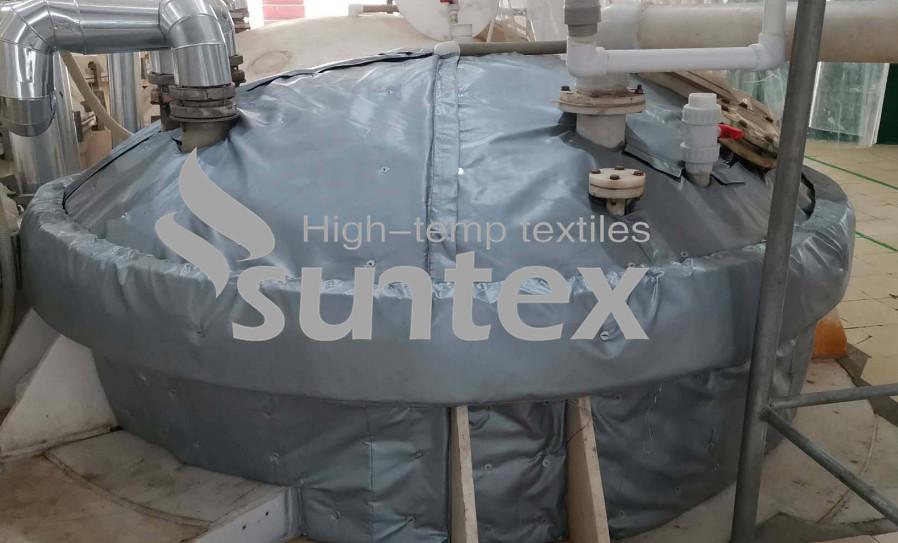

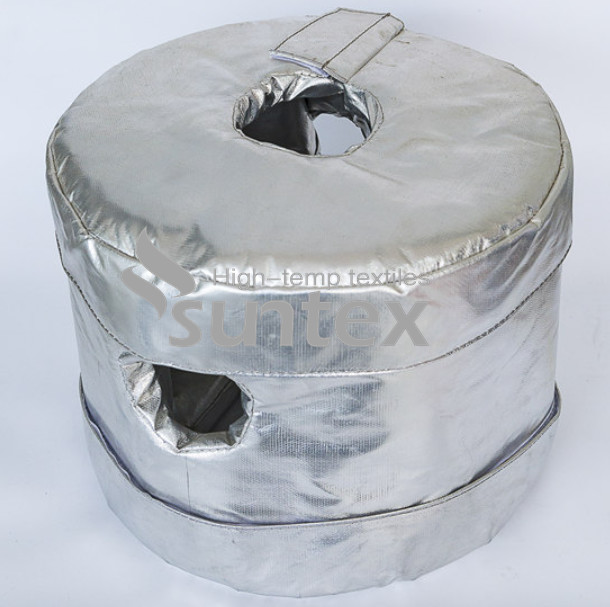

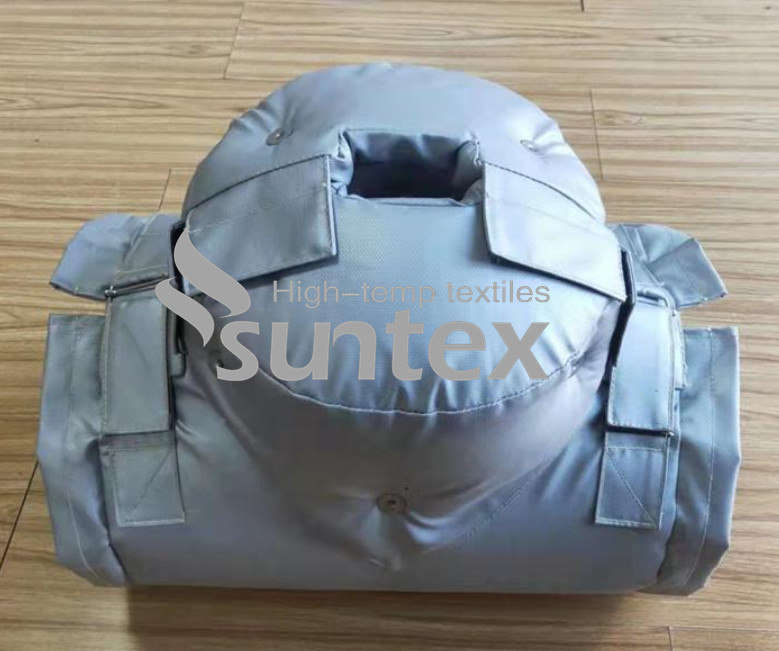

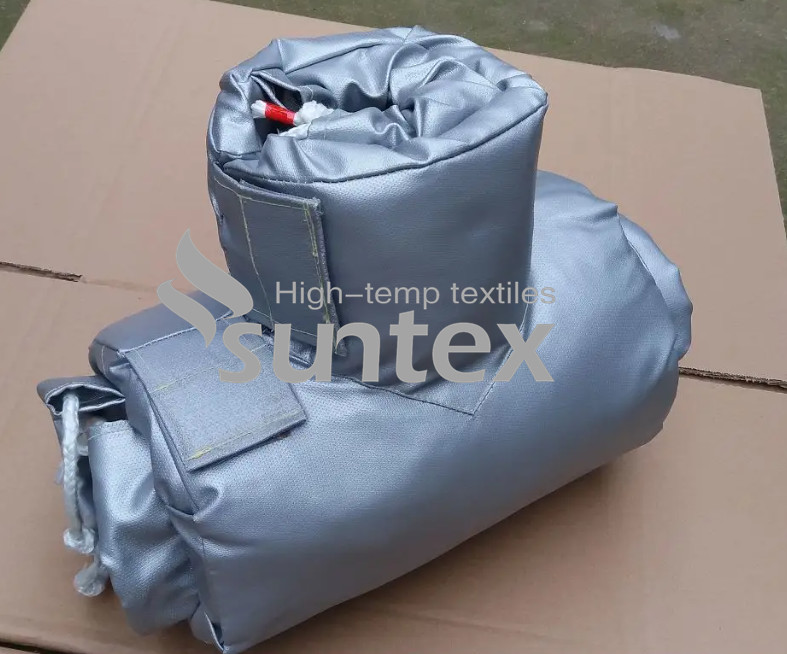

Customized Reusable Fiberglass Thermal Cover Removable Insulation Jacket
Suntex removable insulation jackets are made of glass fiber and high-temperature resistant aluminum foil or silicone cloth. The Jacket comprises three layers-inner, insulation, and protective layers. The working temperature can be up to 1000 C.It has many advantages such as excellent insulation, water, and oil proofing,multi-lay protection,anti-corrosion, easy to clean, easy to bend,pollution-free. It Can be customized according to different shapes and sizes of the equipment, it is all up to customers’ requirements.
Application:
--removable thermal insulation cover, insulation blanket, insulation cover
--injection molding machine, extrusion machines, molds& dies

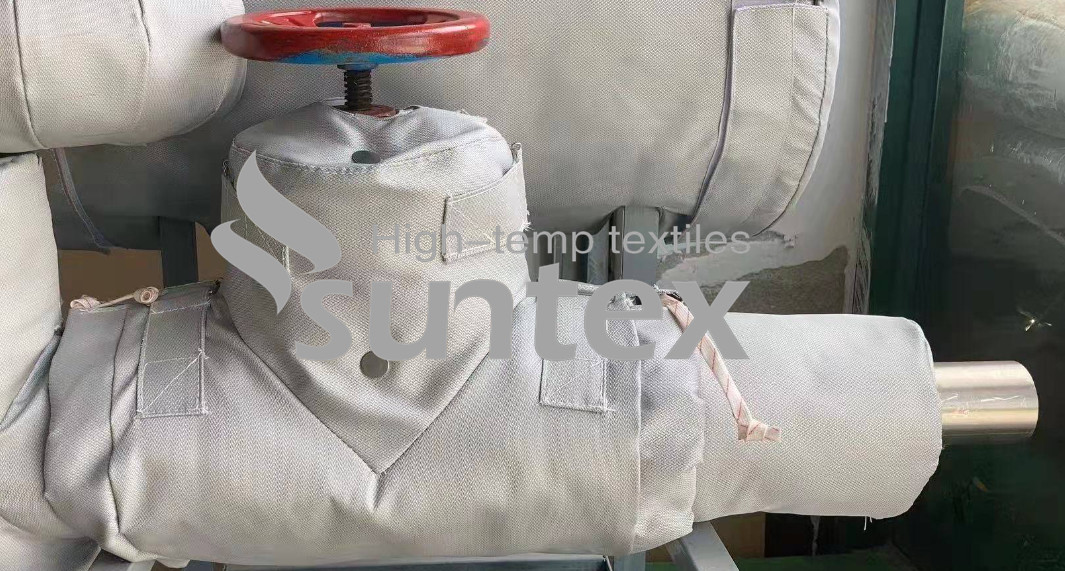

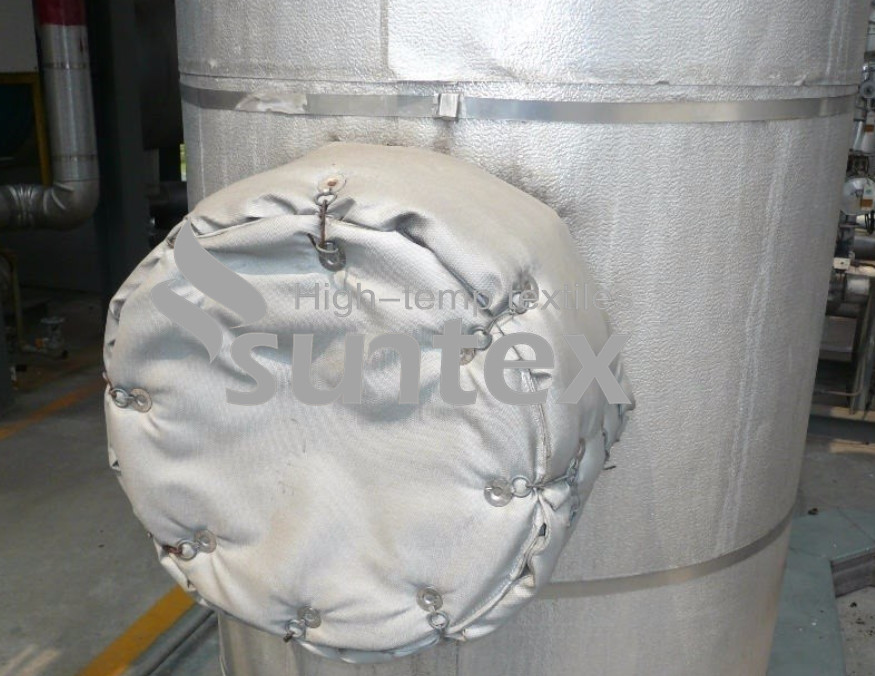

--heat preservation and insulation on pipes. elbow, flange, tees, chemical reactors
--turbine suits of thermal power and nuclear powers
--gas turbine suits, the heat exchanges and the exhaust pipe of engines
Hereunder is a fabrics list for thermal insulation jacket, cover, and mattress.
| Style No. | Base fabric | Coatings | Color | Weight | Thickness | Working temp. | |||
| (gram/m2) | (Oz/yd2) | (mm) | (inch) | (0C) | (0F) | ||||
| GF430P-SI1413 | Fiberglass | Silicone | silver grey | 510 | 15 | 0.4 | 0.016 | 260 | 500 |
| GF430P-SI2423 | Fiberglass | Silicone | silver grey | 560 | 16 | 0.45 | 0.018 | 260 | 500 |
| GF660P-SI2453 | Fiberglass | Silicone | silver grey | 960 | 28 | 0.76 | 0.030 | 260 | 500 |
| GF880P-SI2463 | Fiberglass | Silicone | silver grey | 1380 | 41 | 1.25 | 0.049 | 260 | 500 |
| GF600-WS210 | Fiberglass | Weave-locked | Green | 630 | 19 | 0.6 | 0.024 | 550 | 1000 |
| GF800-WS212 | Fiberglass | Weave-locked | Blue | 830 | 24 | 0.75 | 0.030 | 550 | 1000 |
| GF430-PTFE213E | Fiberglass | PTFE | Grey/Black | 530 | 16 | 0.45 | 0.018 | 550 | 1000 |
| GF430-AL1110 | Fiberglass | Aluminum Foil | Silver | 470 | 14 | 0.4 | 0.016 | 550 | 1000 |
| GF430-AL1300 | Fiberglass | Aluminized polymer film | Silver | 450 | 13 | 0.4 | 0.016 | 550 | 1000 |
| TGF1000-GP225 | Fiberglass | Graphite | Black | 1100 | 32 | 1.5 | 0.059 | 700 | 1290 |
| TGF2050-GF235 | Fiberglass | Graphite | Black | 2270 | 67 | 3.5 | 0.138 | 700 | 1290 |
| TGF880-GP225 | Fiberglass | Graphite | Black | 980 | 29 | 1 | 0.039 | 700 | 1290 |
| TGF1000-VE226 | Fiberglass | Vermiculite | Tan | 1080 | 32 | 1.5 | 0.059 | 750 | 1380 |
| TGF1000-CS2110 | Fiberglass | Calcium Silicate | White | 1080 | 32 | 1.5 | 0.059 | 700 | 1290 |
| TGF1000-CS2111 | Fiberglass | Calcium Silicate | Green | 1080 | 32 | 1.5 | 0.059 | 700 | 1290 |
| TGF1000-CS2112 | Fiberglass | Calcium Silicate | Blue | 1080 | 32 | 1.5 | 0.059 | 700 | 1290 |
